Schüco AWS 70 HI Aluminium Windows

Q: What U-values does the Schüco AWS 70 HI achieve?

The AWS 70 HI achieves Uw values from 1.3 W/m²K with double glazing and from 1.1 W/m²K with triple glazing, depending on the frame and glass unit specification.

Q: Is the AWS 70 HI suitable for Passive House projects?

The AWS 70 HI is designed for high-insulation and low-energy buildings. For full Passivhaus certification thresholds, we recommend considering the Schuco Passivhaus Certified AWS 90.SI, which carries Passive House Institute certification.

Q: What colour options are available for the AWS 70 HI?

The system is available in the full range of polyester powder coat RAL colours, including dual-colour options that allow a different finish on the interior and exterior face of the frame.

Q: What opening configurations does the AWS 70 HI support?

The Schüco AWS 70 HI supports both inward and outward-opening casement configurations, with classic manual or integrated electromechanical fittings to suit the requirements of each project.

Q: What acoustic performance does the Schüco AWS 70 HI offer?

Depending on the glazing specification selected, the AWS 70 HI can achieve acoustic performance of up to Rw 44 dB – making it a strong choice for projects where sound reduction is a priority.

Features
Specifications
Downloads

Precision Engineering Meets High Insulation Performance

The Schüco AWS 70 HI aluminium window system brings together optimum thermal insulation, narrow frame sightlines, and architectural flexibility in a single, refined solution. Designed to meet the highest technical requirements of modern residential and commercial buildings, it accommodates inward and outward-opening casement configurations with concealed or classic manual fittings, as well as integrated electromechanical hardware – delivering smooth operation and a clean, timeless look.

Outstanding thermal insulation as standard

Narrow sightlines, maximum natural light

Concealed fittings for a sleek, discreet finish

Reliable protection against wind, water and noise

Technical Specifications

Full technical information for the Schüco AWS 70 HI aluminium window system is detailed in the specification table below.

Specification	Detail
Basic system depth	70 mm
Min. face width (frame)	108 mm
Min. face width (vent)	115 mm
Glass thickness	24–48 mm
Thermal transmittance (Uw)	From 1.1 W/m²K (depending on configuration and glazing)
Double glazing Uw	From 1.3 W/m²K
Triple glazing Uw	From 1.1 W/m²K
Air permeability	Class 4 (up to 600 Pa)
Wind load resistance	Up to 2000 Pa (Class 5)
Water tightness	Up to 600 Pa (Class 9A)
Acoustic performance	Rw up to 44 dB (depending on glazing type)
Security	Secured by Design accreditation available
Finishing	Full range of polyester powder coat RAL colours and anodised finishes
Dual colour	Available – different colour inside and out

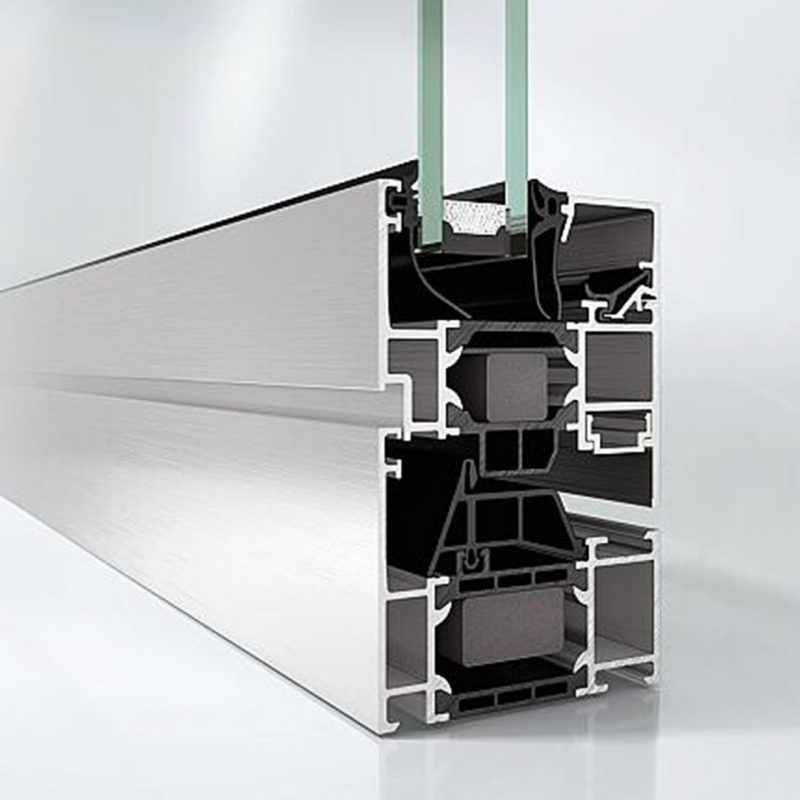

Profile assembly	Weather-stripped profiles with polyamide thermal breaks
Glazing method	Drained and ventilated with EPDM synthetic rubber gaskets
Opening types	Inward and outward-opening casement
Fittings	Classic manual or integrated electromechanical

Product Downloads

Download the full Schüco AWS 70 HI product brochure, technical data sheets, and specification documentation below.

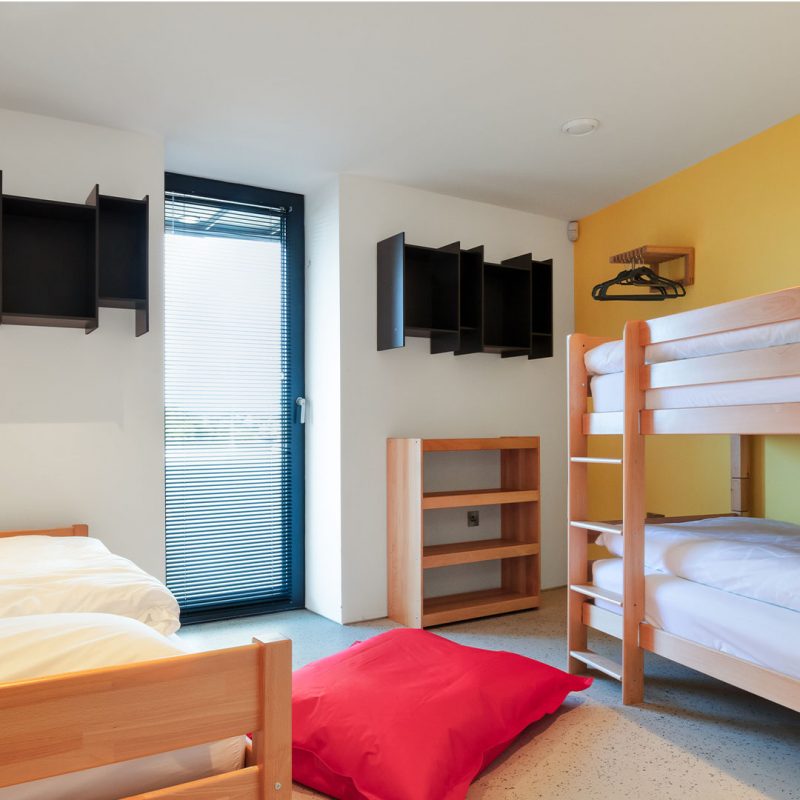

Schuco High Insulation AWS70 aluminium door

Downloads

PDF 2 files

Schuco High Insulation AWS70 HI-window Schueco Windows AWS 70 Range

CAD 1 file

Schuco High Insulation AWS70.HI Window

Designed for Demanding Architecture

The Schüco AWS 70 HI is the right choice for architects and specifiers working on projects where thermal insulation, profile face widths, and design flexibility must all meet the highest standards. The system’s narrow frame sightlines allow greater expanses of glass, maximising natural light while maintaining the individual character of a building.

Whether specified for high-end residential properties or commercial buildings, the AWS 70 HI accommodates a wide range of architectural styles – from clean-lined contemporary homes to more considered, detail-driven designs. Concealed vents and discreet hardware options ensure the aesthetic appeal of the finished installation is never compromised.

Thermal Performance and Long-Term Reliability

With polyamide thermal break technology running through the aluminium frames, the Schüco AWS 70 HI delivers unique thermal insulation performance that significantly reduces heat loss and contributes to improved energy efficiency across a wide range of building types. Triple glazing options further strengthen its credentials for low-energy and near-passive house projects.

Finished in a full range of powder coating RAL colour options – including dual-colour combinations for a different appearance inside and out – the AWS 70 HI offers reliable protection against weather conditions while requiring minimal maintenance over its lifetime. It is a system built to perform and endure.

Get a Quote

View our Gallery

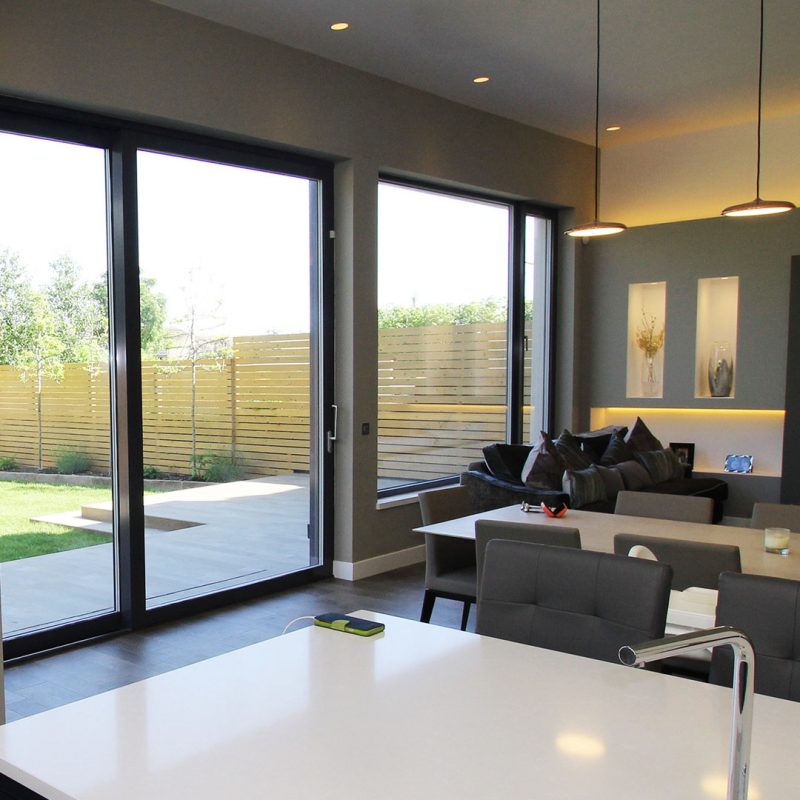

Schuco High Insulation AWS70 sliding door
