Dual Functionality Meets High Thermal Performance

The Europa tilt and turn window opens in two distinct ways – tilted inward at the top for controlled background ventilation, or turned fully inward on a side axis for maximum fresh air and easy cleaning from within the building. This versatility makes it one of the most functional window systems available, particularly suited to modern homes, apartments, and contemporary architecture. The aluminium cladding is applied to the external face only, keeping a natural timber aesthetic internally while ensuring durability and a modern look externally with minimal maintenance.

tilt & turn window

Two opening modes for flexible ventilation and cleaning

Triple glazing option to Uw 0.8 W/m²K

Full RAL colour range on aluminium exterior

PAS 24 security compliance as standard

Product Specifications

Full specification for the Europa tilt and turn Aluclad window in both double and triple-glazed configurations, for use in project documentation and specification.

Product guidance – as standard.
Frame78 x 94 mm - for Double Glazed Europa window and 78 x 108 for Triple Glazed Europa window. Manufactured using mortise and tenon joints, glued and mechanically fixed.
Sash37 x 94 mm- for Double Glazed Europa window and 37 x 108 for Triple Glazed Europa window.
Sill projection110 mm, 150 mm, 180 mm, 210 mm.
Wood moisture content12-19%
Glazing beadsInternally beaded
Product specification.
MaterialEngineered redwood – Standard. Engineered hardwood, Accoya, European oak.
External finishPolyester powder coating.
Glazing28mm Double glazed unit of 4/20/4 Low-E - as standard for double glazed Europa window. 48mm Triple glazed, 4/18/4/18/4 Low-E - as standard for triple glazed Europa window.
Perimeter spacer barsWhite warm edge perimeter spacer with white warm edge integral spacers – Standard. Silver and Black spacer optional.
Trickle ventilationThrough frame head trickle ventilator. EA 1700, 4400, 5000 mm² – Standard.
Internal finishThree coat spray applied factory finish using water based micro-porous paint/stain.
ColourWhite – RAL 9016 – Standard. Any RAL – from RAL classic range. Stain – from TRC stain range.
U-value1.2 W/m²K double glazed – 0.8 triple glazed W/m²K.
Frame profile modulingStandard 25mm.
SecurityConforms to PAS 24.

Product Downloads

Download the Europa tilt and turn specification sheet, product datasheet, and BIM files for project documentation.

tilt window installed at bathroom
PDF 2 files
(B78) Double Glazed Aluminium Clad Tilt & Turn Window (B92) Triple Glazed Aluminium Clad Tilt & Turn Window
CAD 1 file
(B) Aluminium Clad Tilt & Turn Window
REVIT 10 files
B-Europa Alu Window, 1 fixed section B-Europa Alu Window, 1 sash above 1 fixed section B-Europa Alu Window, 1 sash and 1 fixed section B-Europa Alu Window, 1 sash and 2 fixed sections B-Europa Alu Window, 1 sash below 1 fixed section B-Europa Alu Window, 1 sash B-Europa Alu Window, 2 Fixed Sections B-Europa Alu Window, 2 Sashes and 2 Fixed Sections B-Europa Alu Window, 2 sashes, Floating Mullion B-Europa Alu Window, 2 sashes
IFC 10 files
B-Europa Alu Window, 1 fixed section B-Europa Alu Window, 1 sash above 1 fixed section B-Europa Alu Window, 1 sash and 1 fixed section B-Europa Alu Window, 1 sash and 2 fixed sections B-Europa Alu Window, 1 Sash B-Europa Alu Window, 1 Sash Below 1 Fixed Section B-Europa Alu Window, 2 Fixed Sections B-Europa Alu Window, 2 Sashes, Floating Mullion B-Europa Alu Window, 2 Sashes and 2 Fixed Sections B-Europa Alu Window, 2 Sashes

Versatile, Practical, and Built for Modern Architecture

Tilt and turn windows have become a defining feature of contemporary architecture across Europe, and the Europa range brings that same design intelligence to Irish residential and commercial projects. The dual-function opening mechanism – tilt for background ventilation, turn for full access and cleaning – makes this window system genuinely versatile in daily use, and particularly practical in apartments, multi-occupancy developments, and rooms where outward opening is restricted.

The slim profiles of the Europa frame support generous glazing areas, allowing natural light to penetrate deeper into the interior. Whether specified in configurations with a single turn sash or as part of a larger window system, the Europa offers a clean, considered aesthetic that integrates naturally into modern homes and contemporary architecture without appearing utilitarian.

Contact Us
europa tilt & turn window

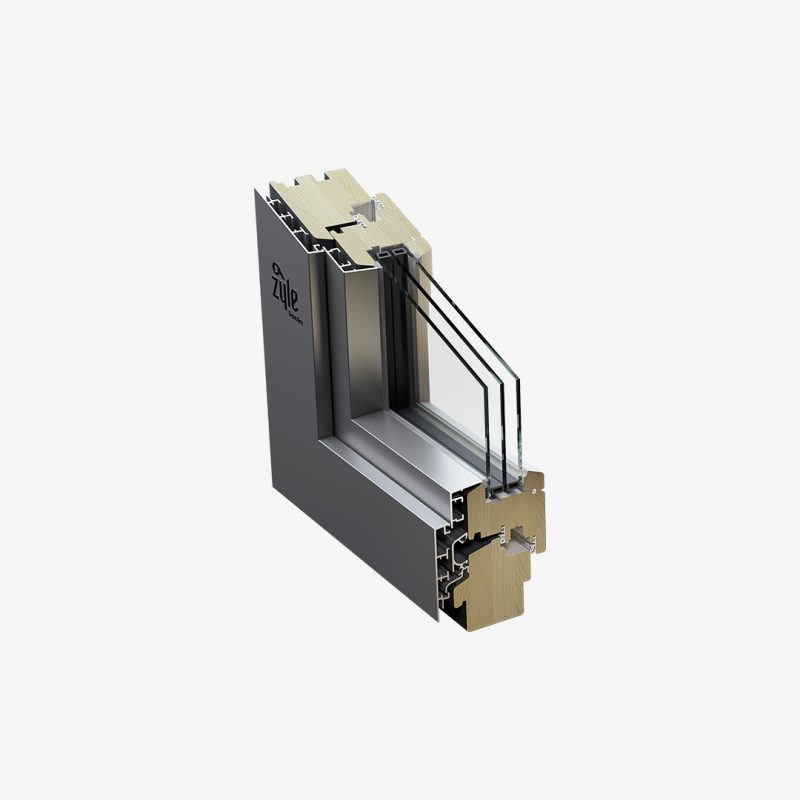

triple glazing window frame
triple glazing window frame

Superior Insulation with an Aluminium Exterior

The Europa is available with either double or triple glazing, with triple glazing achieving a Uw of 0.8 W/m²K – an excellent result that supports energy efficiency targets in new builds and renovation projects alike. The internally beaded glazing configuration is secure, clean in appearance, and prevents external bead removal, contributing to the window’s compliance with PAS 24 security standards.

The aluminium exterior is applied to the outer face only, preserving the warmth and natural character of the timber internally while providing a durable, weather-resistant external finish. Available across the full RAL classic colour range, the Europa gives architects and homeowners complete control over the external appearance of the building, with the peace of mind of knowing the thermal and structural performance beneath meets the highest demands of modern construction.

Get a Quote

Flexible Ventilation with Contemporary Performance

Aluclad tilt and turn windows provide a practical and stylish solution for modern living and multi-storey applications. Their dual-opening function allows for secure ventilation or full inward opening, making cleaning simple and safe. Generous sash sizes create bright, open interiors, while impressive acoustic, thermal, and weather performance ensures comfort and efficiency all year round.
