Key Features of the Reynaers MasterPatio Sliding Door System

The Reynaers MasterPatio sliding door system is built around a lift-and-roll mechanism that sets it apart from conventional sliding patio doors. The door resides within a sliding track and is lifted onto rollers when engaged, enabling smooth, reliable movement of very large, heavy glass panels – making it an excellent choice for modern architecture where glazing requirements are ambitious and the end result must look as good as it performs.

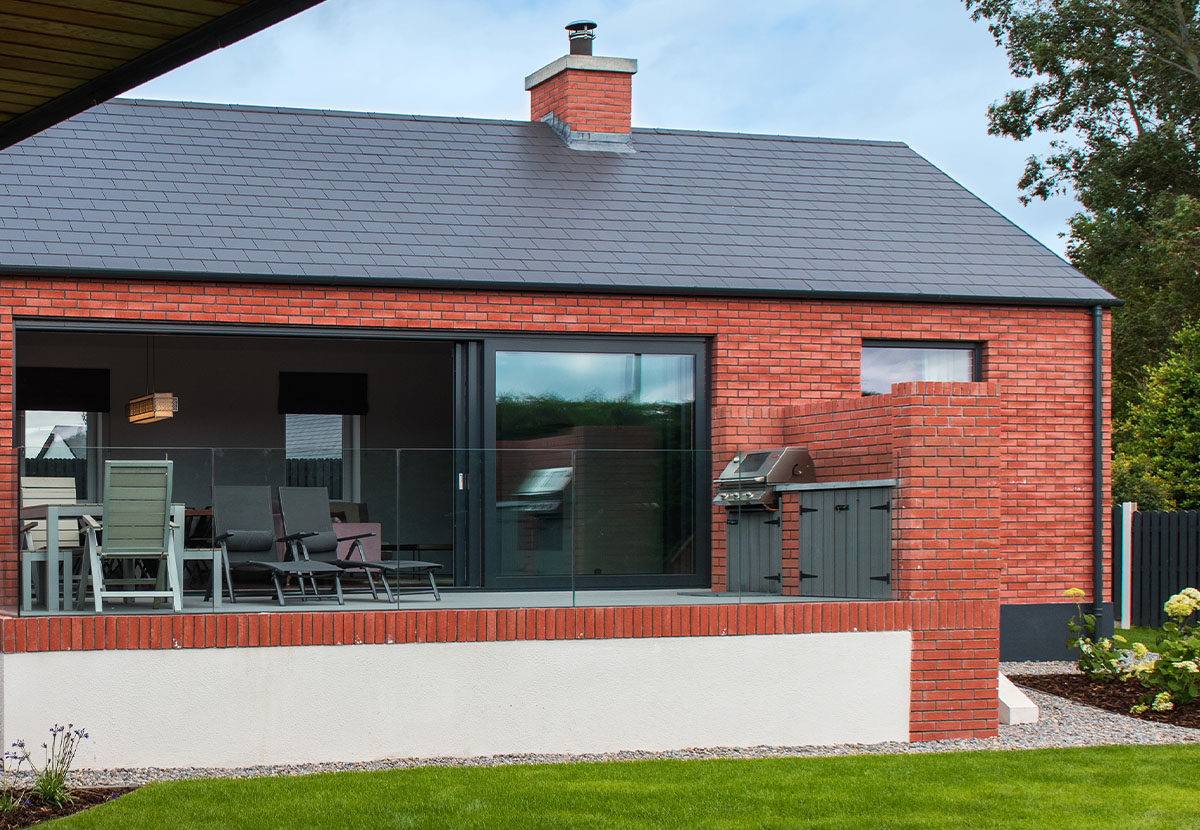

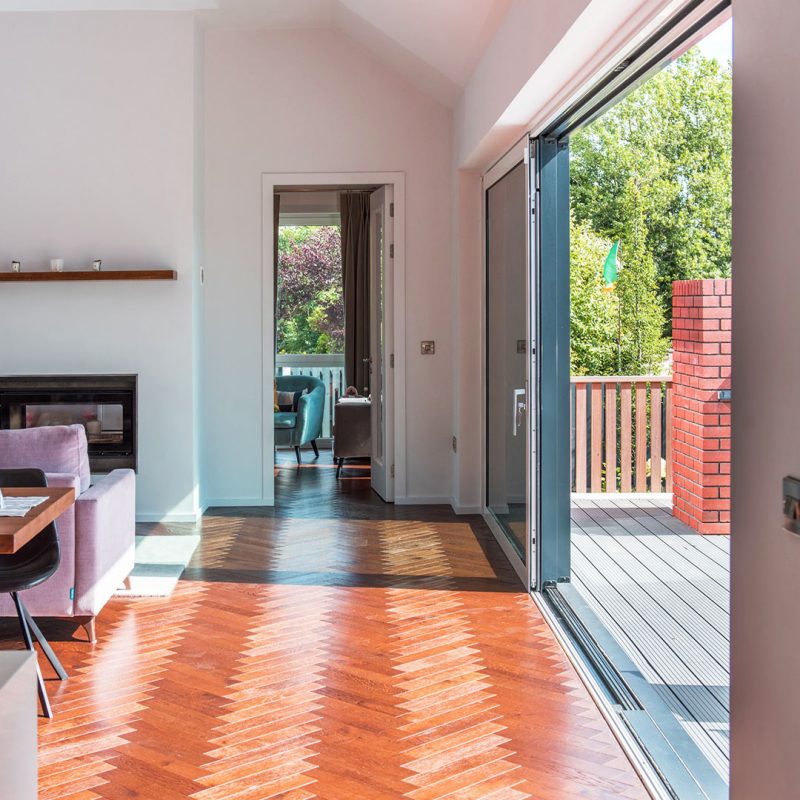

ReynaersCP155 sliding door

Large glass panels up to 2,700mm wide and 3,000mm tall

RC 2 / WK 2 Security accreditation as standard

Polyamide thermal breaks for strong thermal performance

Wide range of colours including dual-colour finishes

Reynaers MasterPatio – Technical Specifications

The full specification data for the Reynaers MasterPatio sliding door system is set out below. All configurations are available to discuss with our technical team.

Product guidance – as standard
Min. Visible width T-profile76 mm
Visible width meeting section115 mm
Max. height vent3000 mm
Max. width vent2700 mm
Max. weight vent (element)400 kg
Overall system depth frame68 mm
Rebate height25 mm
Product specification
Glazing methodDrained and ventilated glazing with EPDM synthetic rubber gaskets.
FinishingChoose from a full range of polyester powder coat colours and anodised finishes.
Dual colourDual colour available offering a different colour inside and out.
Profile assemblyWeather stripped profiles with polyamide thermal breaks.
SecurityMeets the very stringent requirements to be awarded the RC 2/WK 2 accreditation.
Air permeabilityUp to 600 Pa (class 4).
Wind load resistanceUp to 1600 Pa (class C4).
Water tightnessUp to 600Pa (class 9A).
Acoustic performanceRw (C; Ctr) = 35 (-2;-5) dB / 42 (-1;-3) dB, depending on glazing type.

Product Downloads – Reynaers MasterPatio

Download technical data sheets, specification guides, and product information for the Reynaers MasterPatio sliding door system.

A Sliding Door System Built for Ambitious Glazing Requirements

The Reynaers MasterPatio sliding door system is designed for projects where large glass panels are central to the architectural vision. Its lift-and-roll mechanism means that even panels weighing up to 400kg can be moved with ease, giving architects and specifiers the confidence to design genuinely expansive glazed elevations.

With a maximum vent height of 3,000mm and width of 2,700mm, the system provides easy access to outdoor areas – patios, terraces, and gardens – while maintaining a clean design aesthetic with minimal visible aluminium frame. The result is uninterrupted views and an abundance of natural light in the living space, without structural compromise.

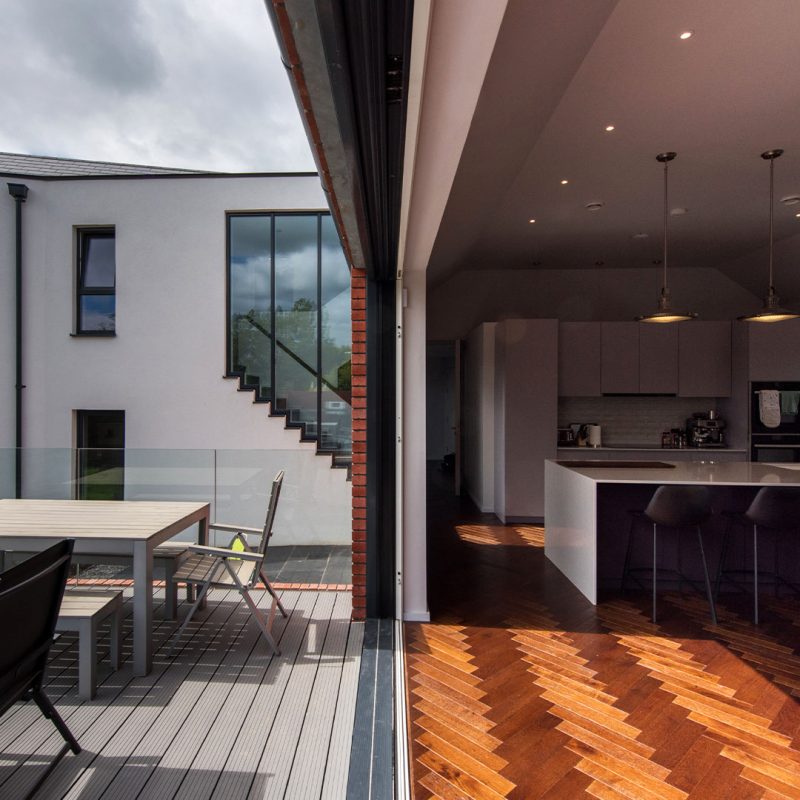

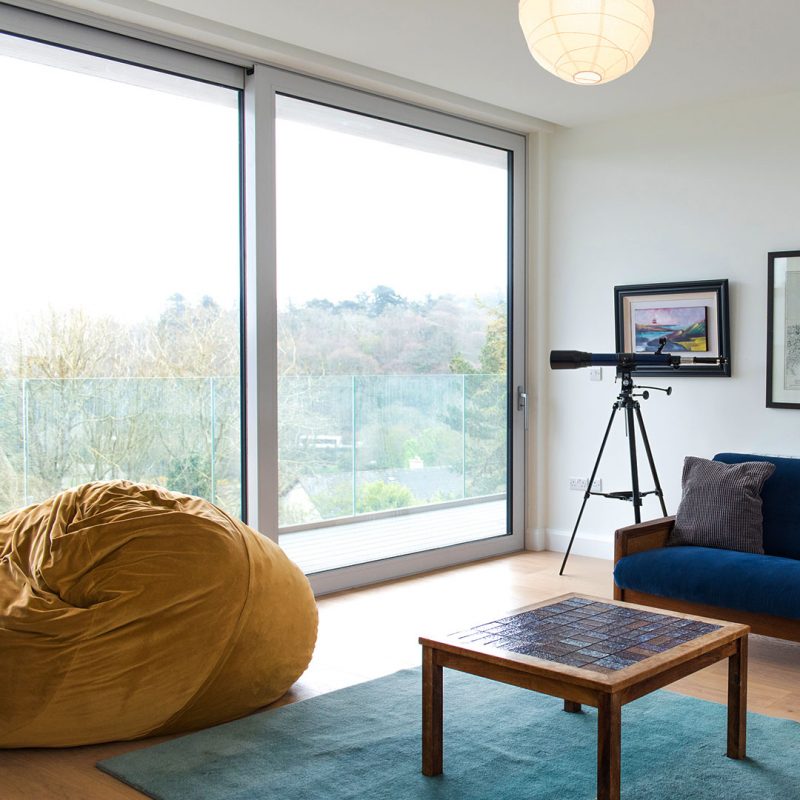

ReynaersCP155 master patio

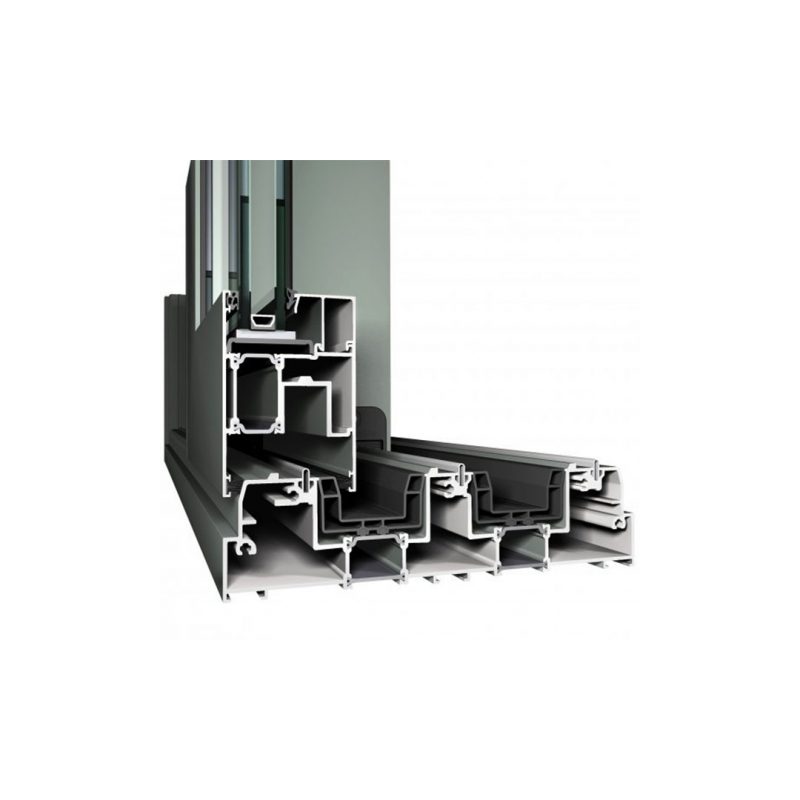

ReynaersCP155 window frame
ReynaersCP155 double glazing frame

Specified for Performance – Trusted for Reliability

The Reynaers MasterPatio offers thermal performance through polyamide thermal breaks, weather-stripped profiles, and glazing options including triple glazing options to suit more demanding energy targets. Its security performance – RC 2 / WK 2 accreditation – provides genuine peace of mind for clients and specifiers across both residential and commercial projects.

Available in a wide range of colours from the full polyester powder coat and anodised palette – including dual-colour configurations – this door system offers significant design flexibility. Whether specified for a contemporary private home or a larger architectural project, the Reynaers MasterPatio sliding door system consistently delivers on both performance and aesthetic appeal.

Maximise Light with Effortless Operation

MasterPatio sliding doors are designed to bring in more light with expansive glass panels and minimal sightlines. Their lift-and-slide mechanism allows for smooth operation while supporting larger, heavier panes than standard systems. The result is a high-performance door that offers excellent insulation and a refined, modern finish.

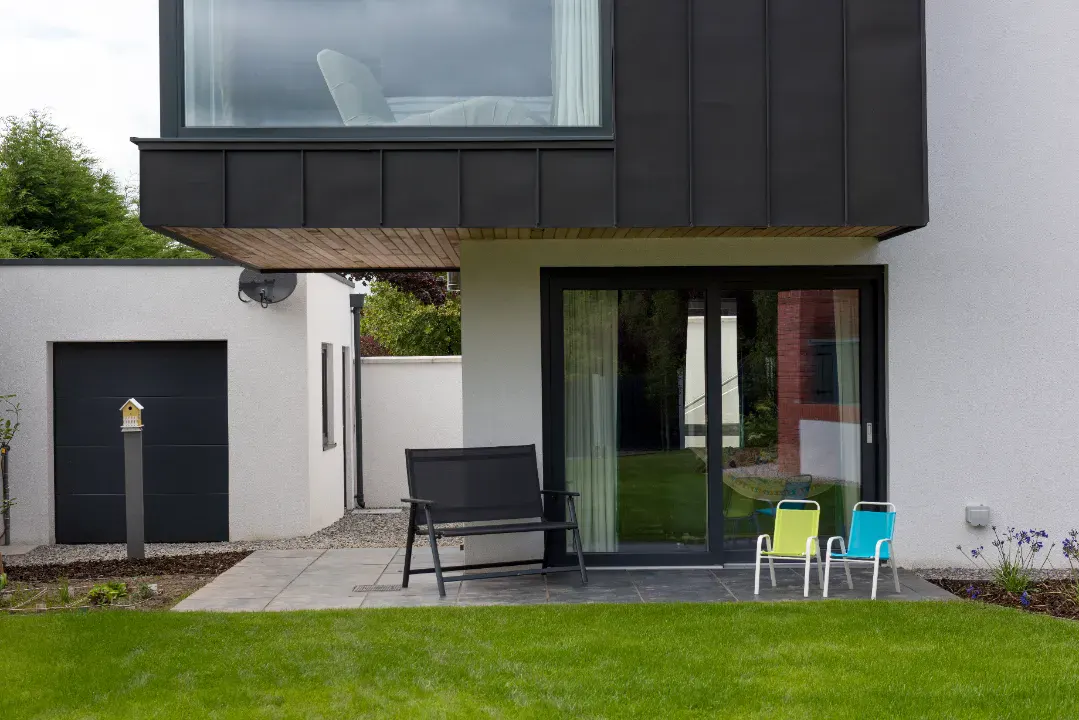

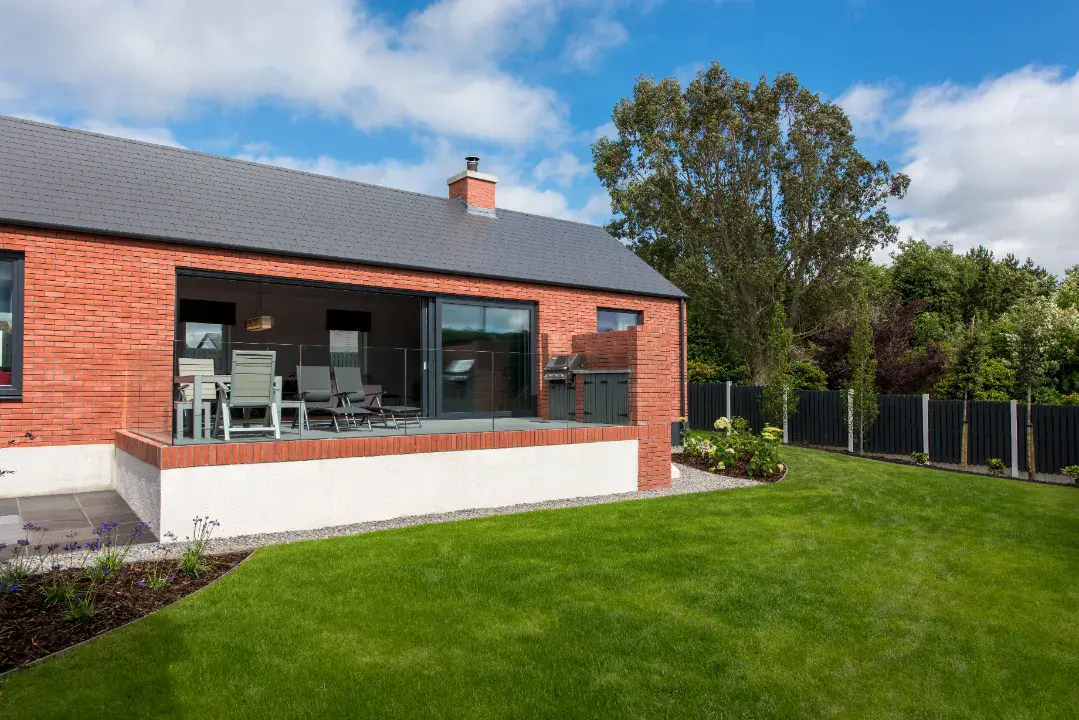

sliding door installed at ireland house back area
