The Reynaers CF77 bifold door is engineered for high performance across every measure. Slim aluminium profiles maximise natural light and views, while strong thermal insulation, a reliable locking system, and Secured by Design accreditation give homeowners and specifiers complete confidence. Available in multiple configuration choices, with dual-colour finishes and a range of threshold options to suit any project.
Full product guidance for the Reynaers CF77 bifold door system. Consult our technical team for project-specific specification support.
| Product guidance – as standard | |
| Max. height vent | 3000mm |
| Max. width vent | 1200mm |
| Max. weight vent (element) | 77mm |
| Overall system depth vent | 77mm |
| Min. Glass thickness | 6mm |
| Max. Glass thickness | 63mm |
| Product specification | |
| Glazing method | Drained and ventilated glazing with EPDM synthetic rubber gaskets. |
| Finishing | Choose from a full range of polyester powder coat colours and anodised finishes. |
| Dual colour | Dual colour available offering a different colour inside and out. |

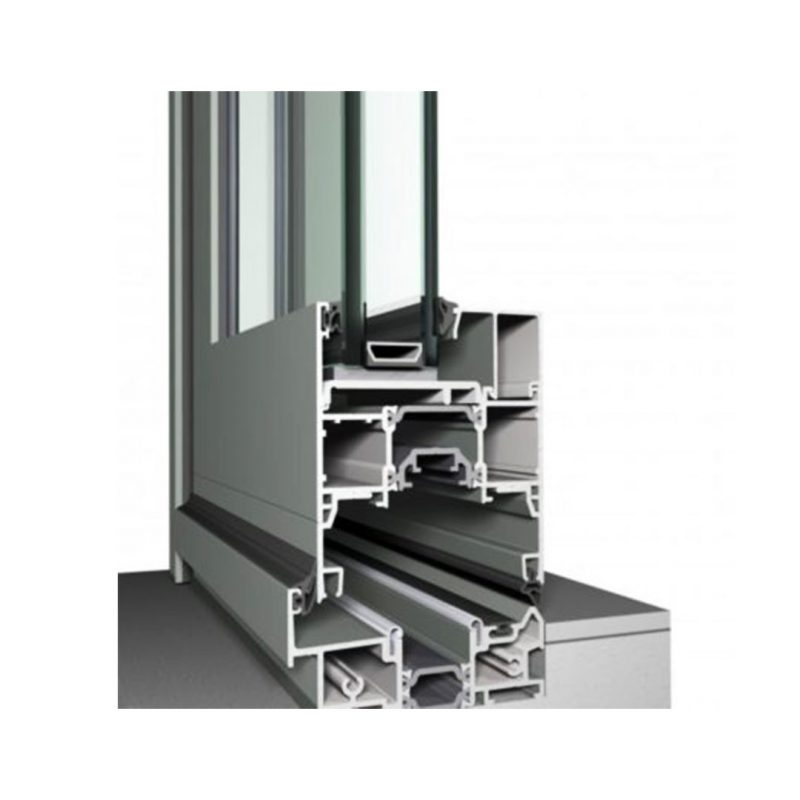

| Profile assembly | Weather stripped profiles with polyamide thermal breaks. |
| Security | Meets the very stringent requirements to be awarded the RC 2/WK 2 accreditation. |
| Air permeability | Up to 600 Pa (class 4). |
| Wind load resistance | Up to 1200 Pa (class B3). |
| Water tightness | Up to 250 Pa (class 6A). |
| Acoustic performance | w (C; Ctr) = 34 (-2;-5) dB / 45 (-1;-5) dB, depending on glazing type dB. |
Download technical datasheets, performance data, and specification documents for the Reynaers CF77 bifold door system.

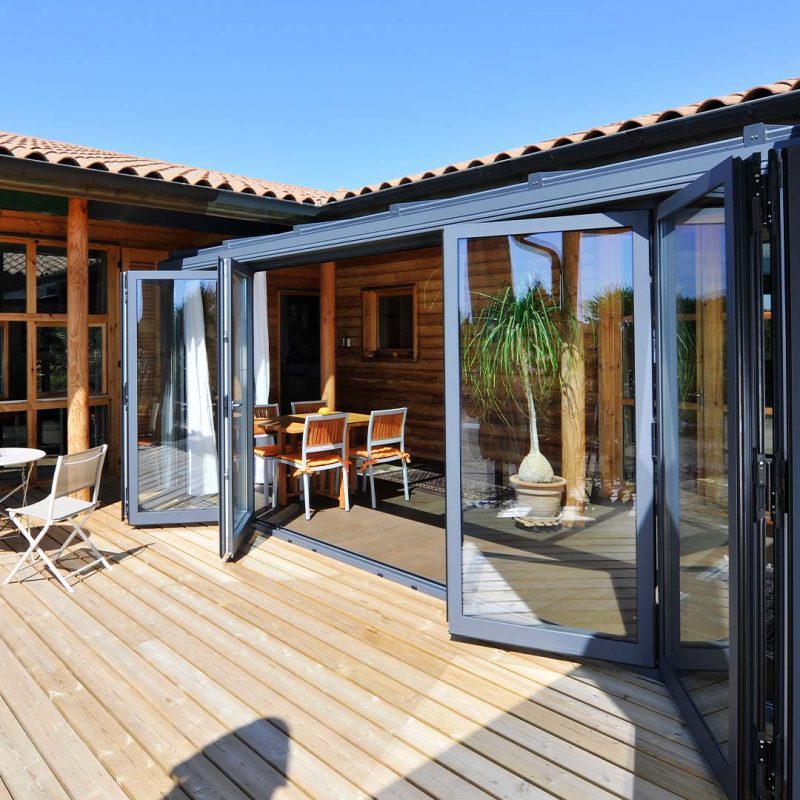

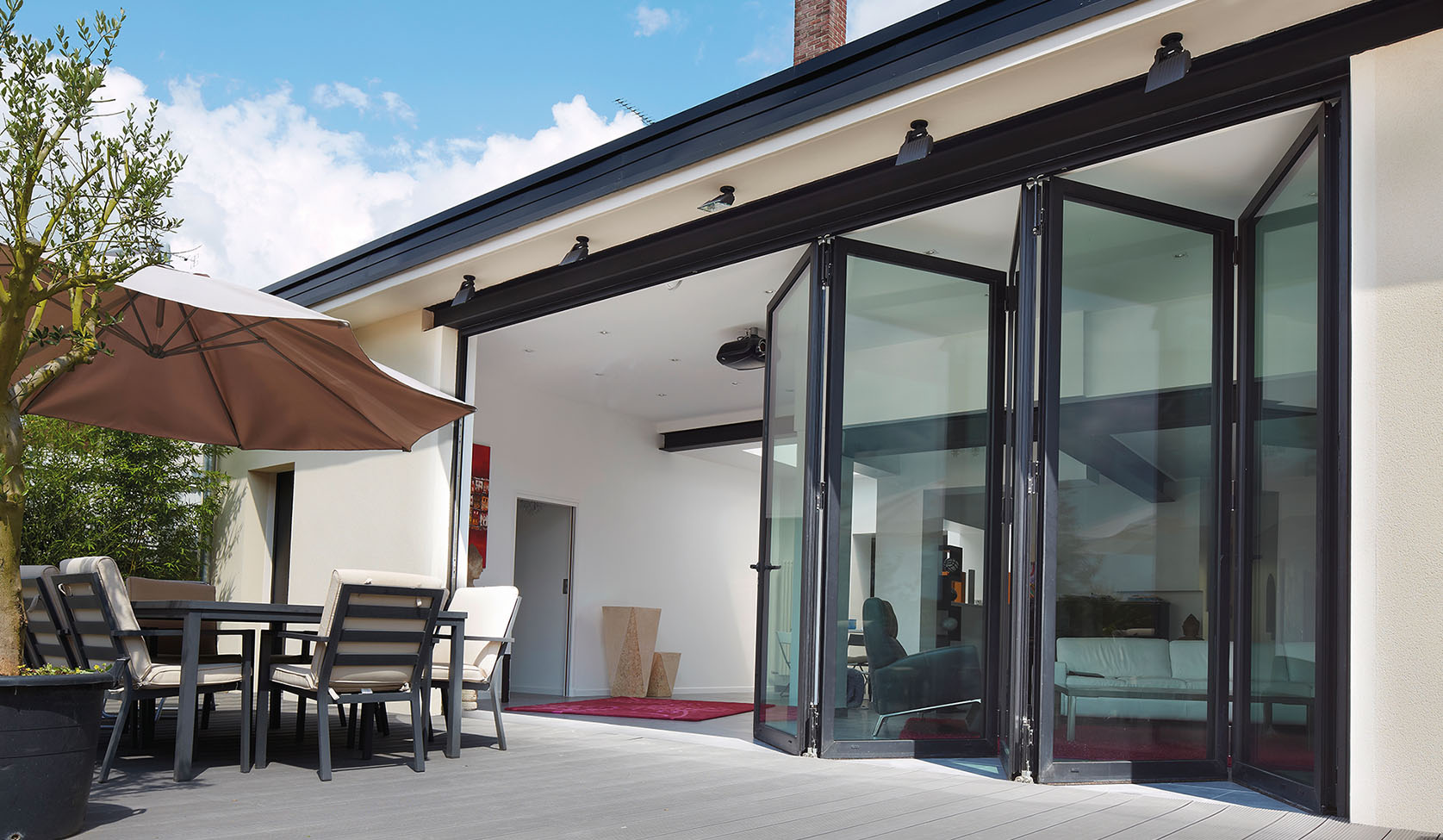

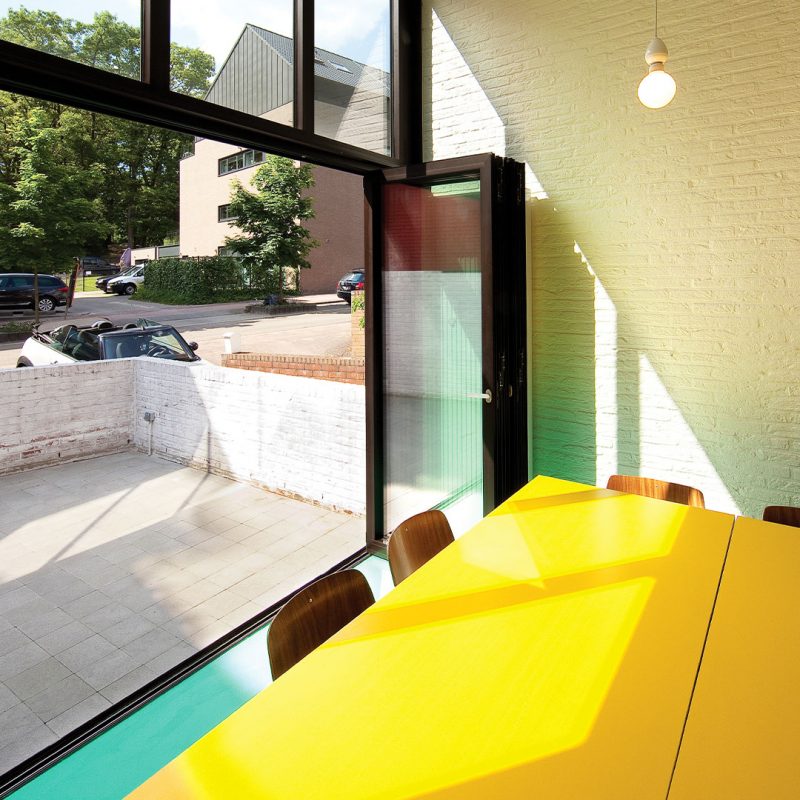

The Reynaers CF77 bifold door is defined by its slim aluminium profiles, which minimise the frame and maximise the glazed area. The result is an exceptionally clean sightline that draws natural light deep into the interior and frames views of the outside space without visual interruption.
Available in a wide range of configuration choices – from two panels to multi-panel arrangements – the CF77 offers genuine versatility for architects and homeowners alike. One panel can also be designated as a principal entrance door, operating independently from the remaining bifold panels without affecting the overall fold system.
Reynaers bifold doors are built to perform across thermal insulation, acoustic attenuation, and weather resistance. With polyamide thermal breaks, weather-stripped profiles, and glazing options up to 63mm, the CF77 meets the demands of high specification residential and commercial projects across Ireland.
Security is central to the CF77’s credentials. Meeting RC 2/WK 2 accreditation and Secured by Design requirements, the system’s locking system provides genuine peace of mind for every homeowner and specifier. Finished in a full range of colours – including dual-colour aluminium bifolds – the CF77 combines premium quality with lasting durability.
Key questions about the Reynaers CF77 bifold door system, answered by our technical team. Contact us for project-specific support and specification guidance.
Contact UsThe CF77 combines slim sightlines, polyamide thermal breaks, RC 2/WK 2 security accreditation, and double or triple glazing options – making it a credible high-specification choice for both domestic and commercial projects.
The Reynaers CF77 is available in a range of configurations, opening to the left, right, or both sides. One panel can also function independently as a principal entrance door – without disrupting the fold action of the remaining panels.
The CF77 is available with a range of threshold options to suit different project requirements and accessibility needs, including low-threshold solutions for level access between interior and exterior spaces.
Reynaers aluminium bifold doors are available in a full range of polyester powder coat colours and anodised finishes. Dual-colour options allow a different finish on the interior and exterior faces for greater design flexibility.
Yes. The CF77's strong thermal and acoustic insulation performance, robust weather resistance ratings, and Secured by Design accreditation make it a reliable bifolding door option for both large-scale domestic and commercial applications.
